Square D Model 6 MCC's & Mill Electrics

COMPLETE MILL ELECTRICAL

MCC ROOM 1

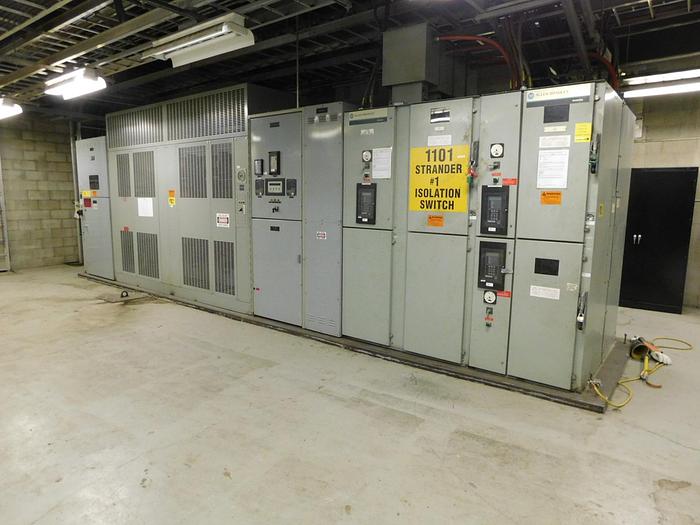

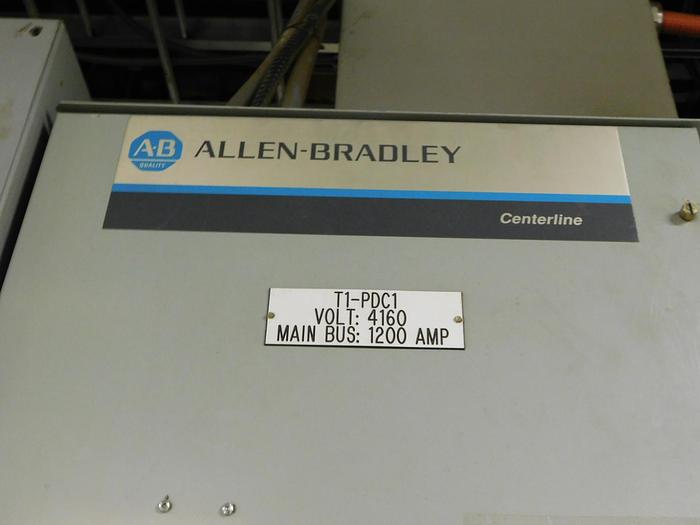

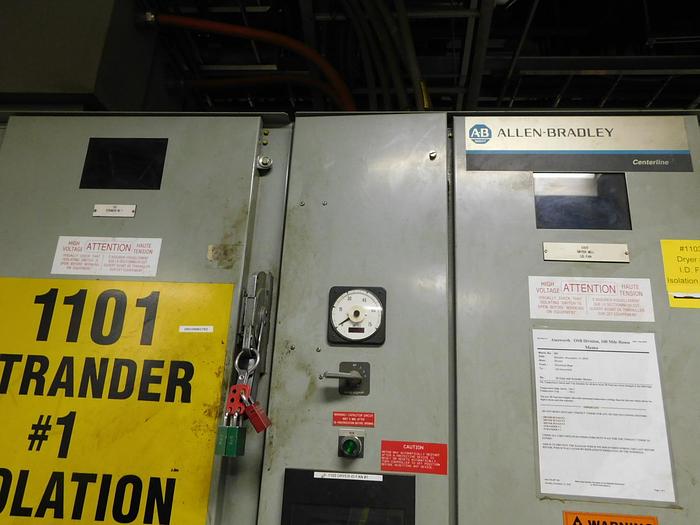

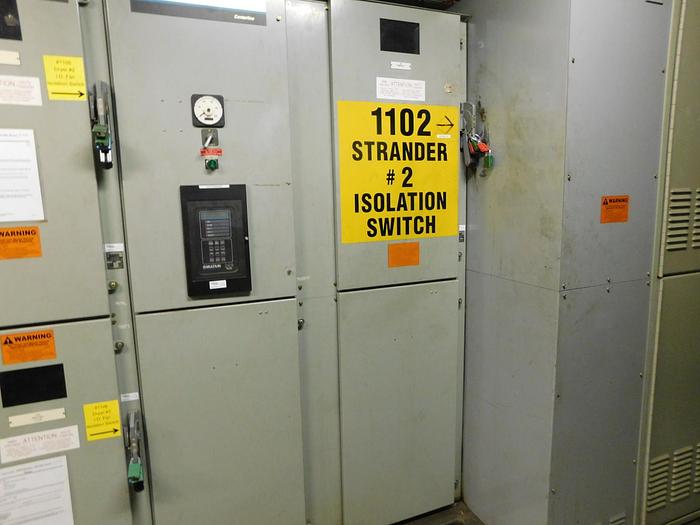

• MAIN PDC UNIT, 1200AMP, W/ TRANSFORMER; DST1 25 KU 600 AMP LOAD BREAK SWITCH, 2500KVA TRANSFORMER;

SQUARE D MCC’S

MCC ROOM 5

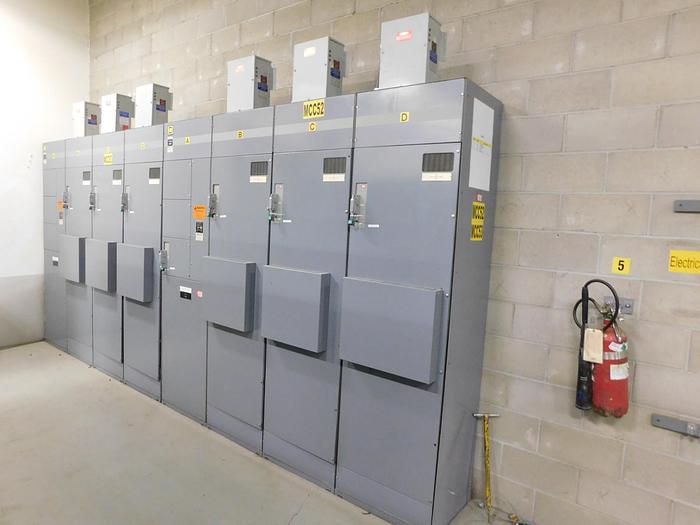

• MCC 52- SQUARE D 4 SECTION MCC; MODEL 6; NO. 54-4441568-P; TYPE 2B; 1200 HOR/ 300 AMP VERT; 600V 3PH; (FOR HYD. PRESS); SECTION FOR INCOMING LUGS; SECTIONS 1, 2 & 3 FOR PUMPS #5201, 5202 & 5203; W/ (3) GE 40KVAR CAPACITORS;

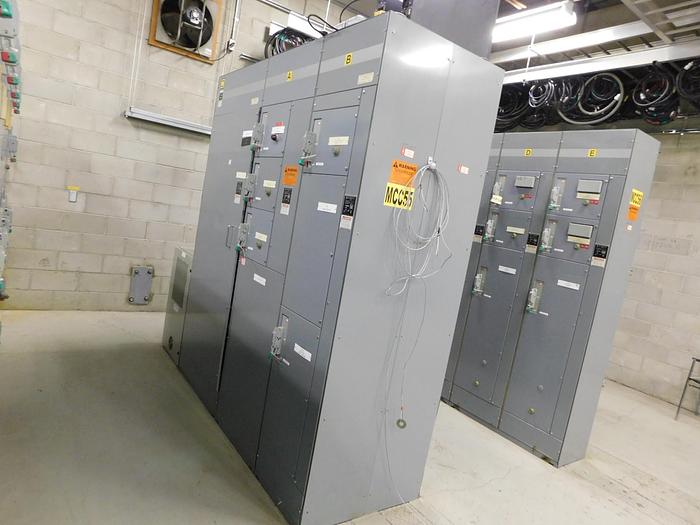

• MCC 53- SQUARE D 4 SECTION MCC; MODEL 6; NO. 54-4441588-Q; TYPE 1B; 1200 AMP HOR, 300 AMP VERT; 600V; SECTION FOR INCOMING LUGS; SECTIONS EACH FOR 5301, 5302, 5303 PRESS HYD. PUMPS (NO. 4, 5 & 6); W/ (3) GE 40KVAR CAPACITORS; NOTE: MCC'S 52 & 53 ARE SIDE BY SIDE BUT NOT CONNECTED

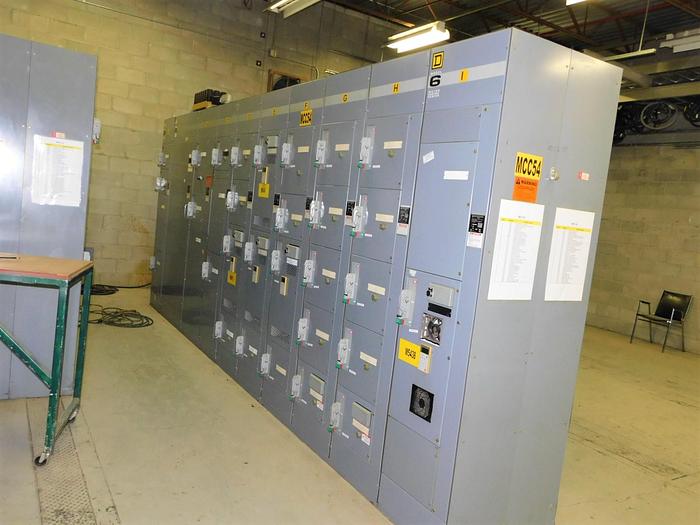

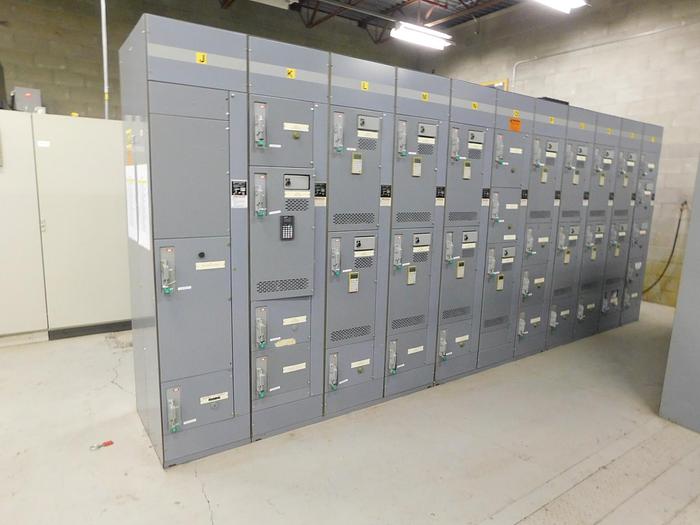

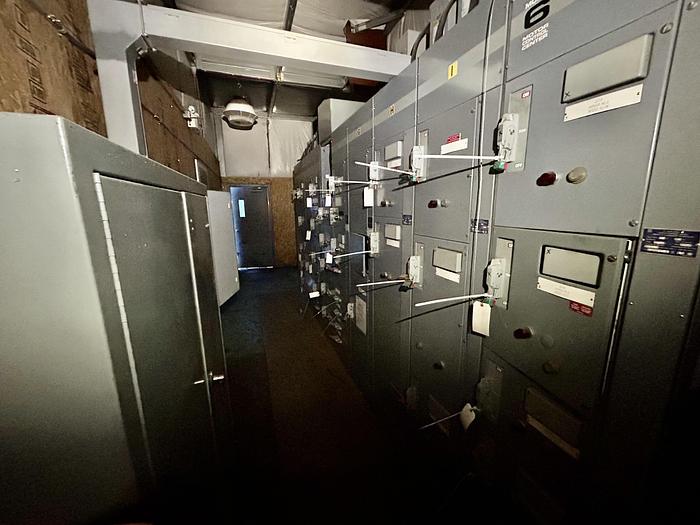

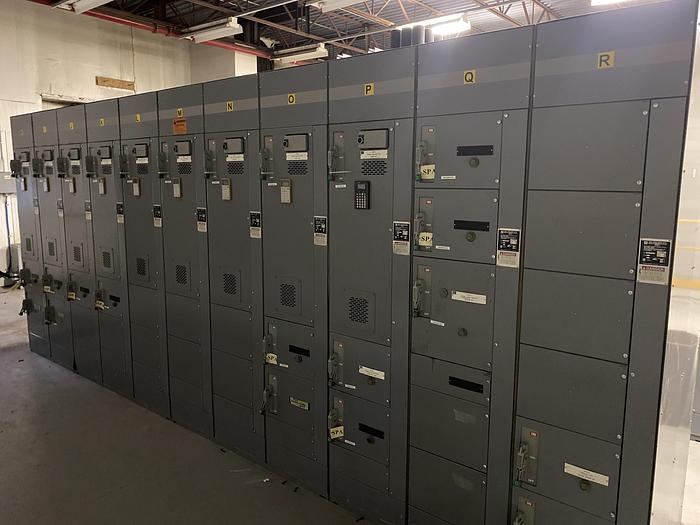

• MCC 54- SQUARE D 11 SECTION 2 SIDED MCC; MODEL 6; 800 HOR/300 VERT AMPS; 600V; SIDE 1: 10 SECTIONS (A - I); PLC I/O SECTION; (9) SWITCH SECTIONS W/ (30) SWITCHES, (5) W/ VARIABLE FREQUENCY DRIVES (VFD'S); SIDE 2: 11 SECTIONS (J - T); (36) SWITCHES, (15) W/ VFD'S;

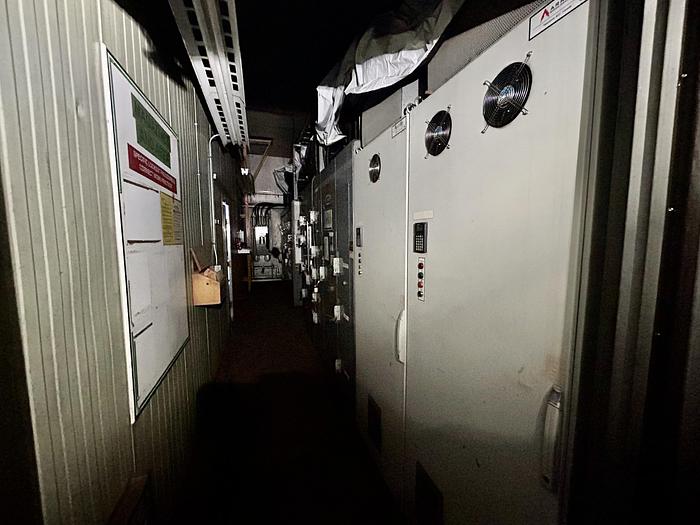

• MCC 55- SQUARE D 5 SECTION MCC; MODEL 6' 800/300 AMP 600V; NO. 54-4441568-S; TYPE 2B; SIDE 1: 3 SECTIONS; PLC I/O RACK SECTION; (2) SWITCH SECTIONS (A & B); W/ (5) SWITCHES; SIDE 2: 5 SECTIONS (C - G); (14) SWITCHES, (3) W/ VFD'S; W/ ARROW BRP2 BRAKE RESISTOR PANEL #2;
• MCC 56- SQUARE D 5 SECTION MCC; MODEL 6, NO/ 54-4441568-T; TYPE 1B; 800/300 AMPS 600V 3PH; (15) SWITCHES

MCC ROOM 4

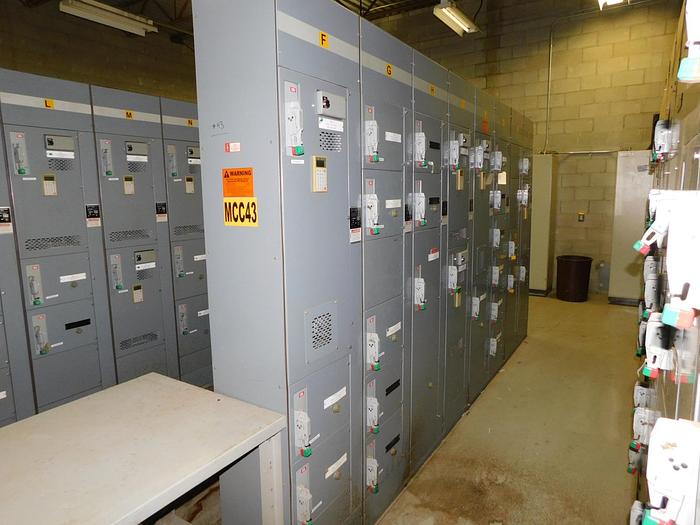

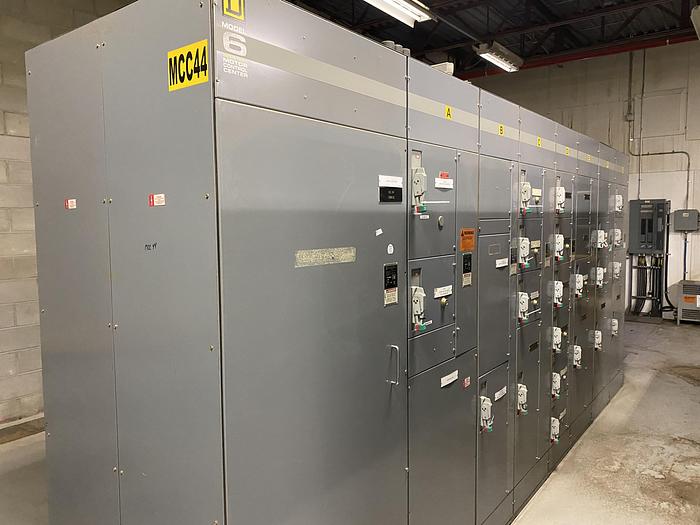

• MCC 43- SQUARE D 2 SIDED MCC; MODEL 6; 800/300 AMPS; 600V; SIDE 1: (6) SECTIONS, INCL. PLC I/0 SECTION; (5) SECTIONS (A - E), W/ (15) SWITCHES; SIDE 2: (8) SECTIONS (F - M); 26 SWITCHES, (5) W/ VFD'S;
• MCC 44- SQUARE D 2 SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (6) SECTIONS, INCL. PLC I/O SECTION, (7) SECTIONS (A - G) W/ (22) SWITCHES; SIDE 2: (11) SECTIONS, 24 SWITCHES, (9) W/ VFD'S; ARROW BRPI BRAKE RESISTORS PANEL #1;

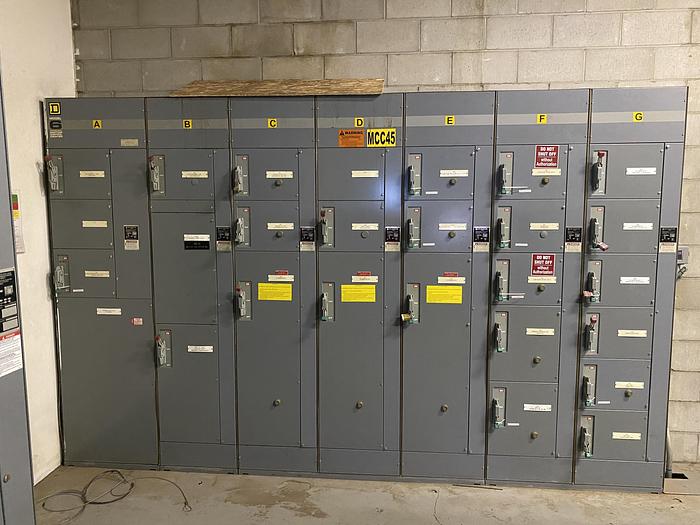

• MCC 45- SQUARE D 7 SECTION MCC; MODEL 6; NO. 54-4441568-N TYPE 2B; 800/300 AMP 600V; (23) SWITCHES;

MCC ROOM 3 & 4

• MCC 25- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V;  SIDE 1: (6) SECTIONS, INCL. PLC I/O SECTION; (5) SECTIONS (A - E) W/ (13) SWITCHES; SIDE 2: (6) SECTIONS; (25) SWITCHES
• MCC 26- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (6) SECTIONS, INCL. PLC I/O SECTION & (5) SECTIONS (A - E) W/ (14) SWITCHES; SIDE 2: (6) SECTIONS, (25) SWITCHES;

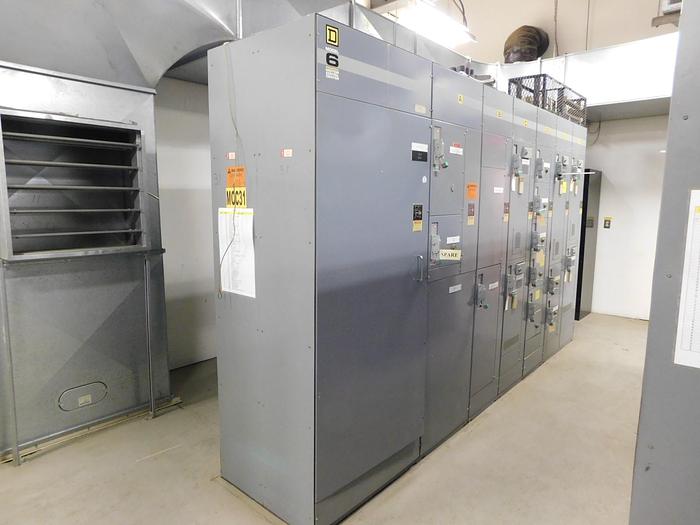

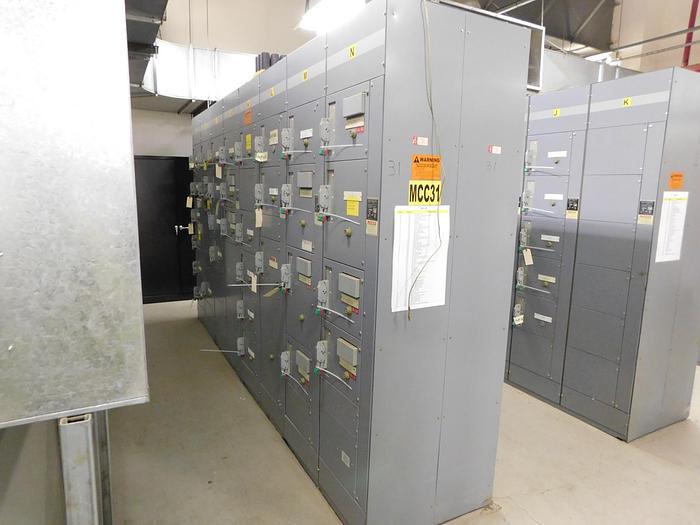

• MCC 31- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (7) SECTIONS, INCL. PLC I/O SECTION, & (6) SECTIONS W/ (15) SWITCHES, (4) W/ VFD'S; SIDE 2: (8) SECTIONS, (32) SWITCHES, (1) W/ VFD;
• MCC 32- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; W/ BENSHAW SOFT START; SIDE 1: (4) SECTIONS, INCL. PLC I/O SECTION, BENSHAW SOFT START FOR EFB NO. 2 BOOSTER FAN; (2) SECTIONS W/ (4) SWITCHES; SIDE 2: (5) SECTIONS, (15) SWITCHES;

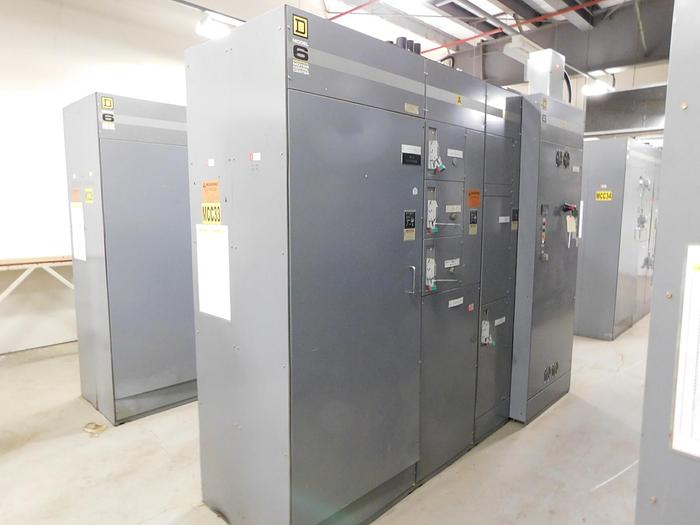

• MCC 33- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; W/ BENSHAW SOFT START; SIDE 1: (4) SECTIONS, INCL. PLC I/O SECTION, BENSHAW SOFT START FOR EFB NO. 2 BOOSTER FAN; (2) SECTIONS W/ (4) SWITCHES; SIDE 2: (5) SECTIONS, (15) SWITCHES

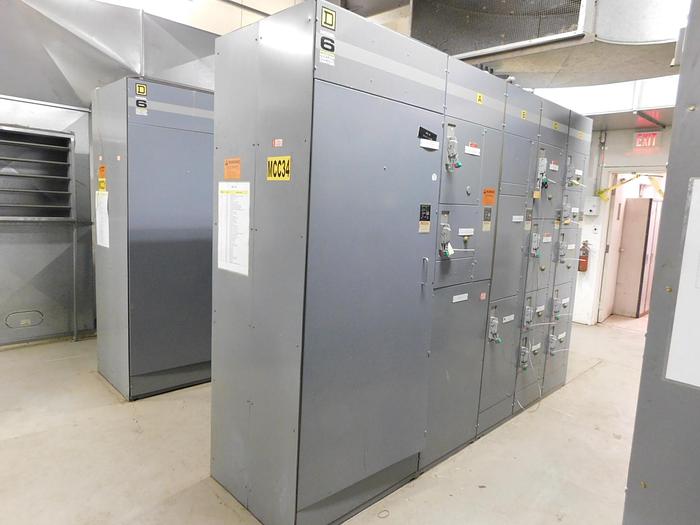

• MCC 34- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (5) SECTIONS, INCL. PLC I/O SECTION; (4) SECTIONS W/ (12) SWITCHES; SIDE 2: (7) SECTIONS W/ (20) SWITCHES, INCL. (3) VFD'S;

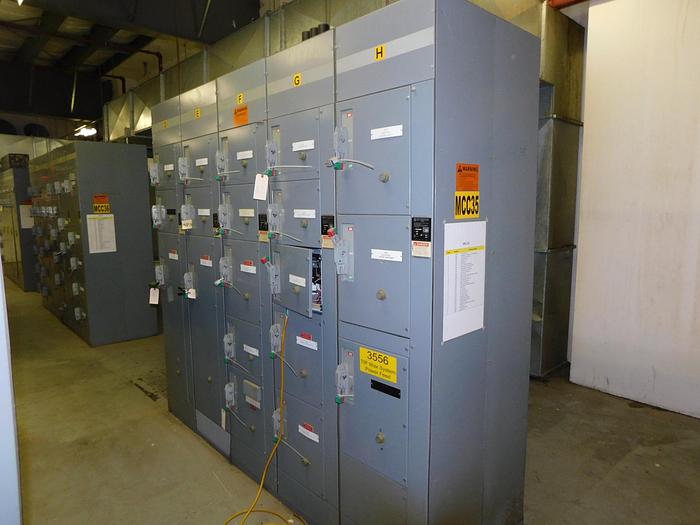

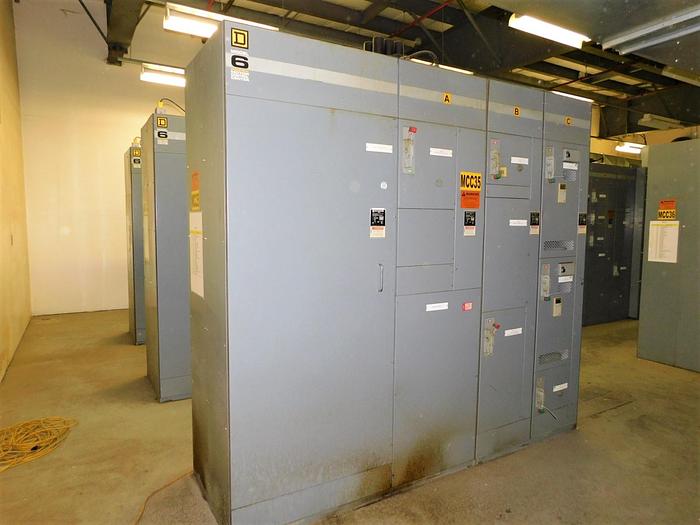

• MCC 35- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (4) SECTIONS, INCL. PLC I/O SECTION & (3) SECTIONS; (6) SWITCHES, W/ (2) VFD'S; SIDE 2: (5) SECTIONS, (19) SWITCHES;

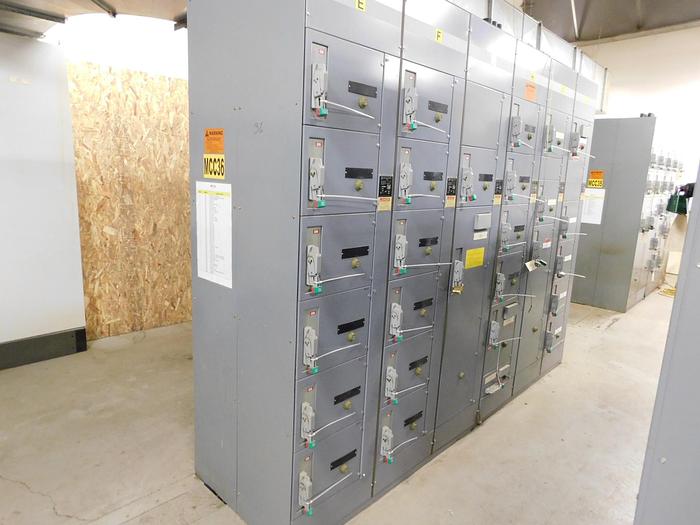

• MCC 36- SQUARE D TWO SIDED MCC; MODEL 6; 800/300 AMP 600V; SIDE 1: (5) SECTIONS, INCL. PLC I/O SECTION, (3) SECTIONS, (6) SWITCHES, (2) 2/ VFD'S; SIDE 2: (5) SECTIONS, (19) SWITCHES;

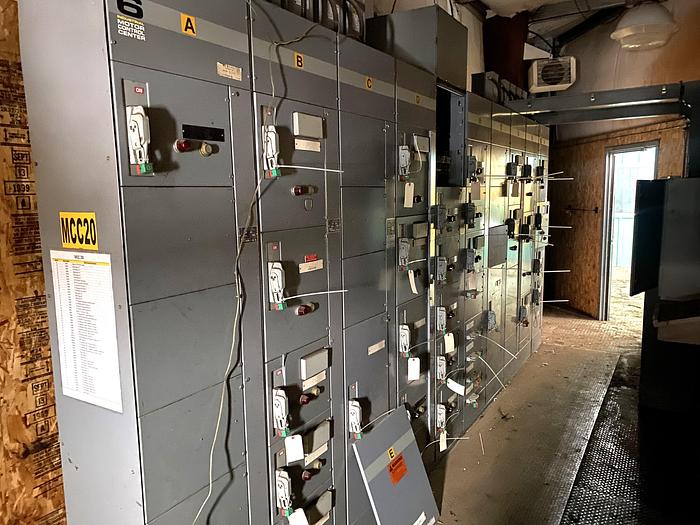

• MCC 20- SQUARE D 10 SECTION MCC; MODEL 6, 600/300 AMP, 600V, (10) SECTIONS, (33) SWITCHES (FOR DEBEARKER 3 LINE)

MCC ROOM 23

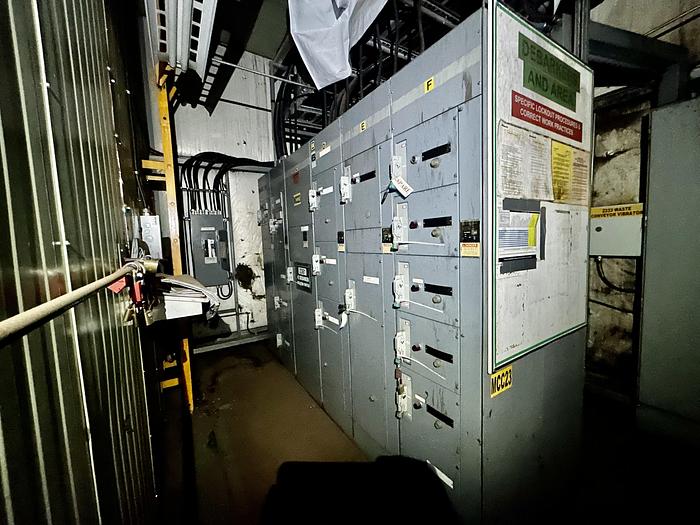

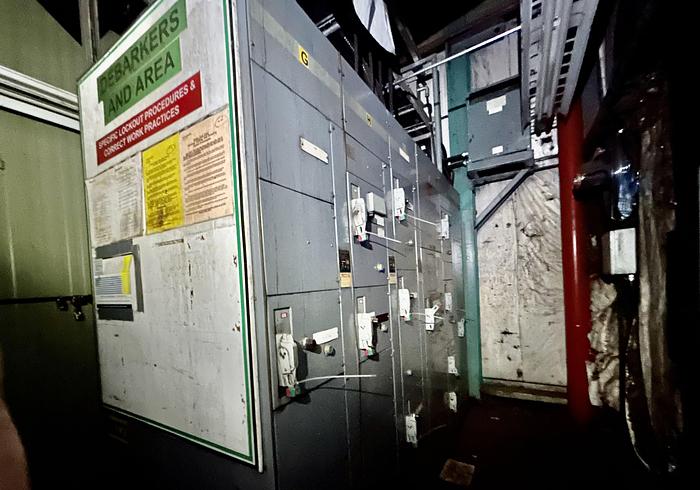

• MCC 23- SQUARE D TWO SIDED MCC; MODEL 6, 800/300AMP, 600V; SIDE ONE: (6) SECTIONS A-F; (150 SWITCHES, SIDE TWO G-L: (12) SWITCHES, (FOR #1 DEBARKER LINE)

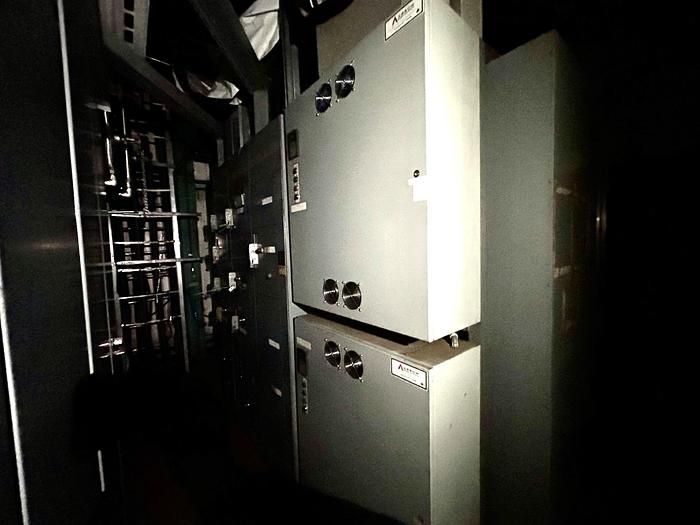

• MCC 22- SQUARE D TWO SIDED MCC, MODEL 6, 800/300 AMP, 600V, SIDE ONE A-E: 5 SECTION, (14) SWITCHES, W/ (2) ARROW VFD CABINETS,(BARKER FEEDWORKS & BARKER RING); SIDE TWO F-H, (13) SWITCHES, (2) ARROW VFD CABINETS, SOUTH & NORTH WAVE FEEDERS)
• MCC 24- SQUARE D TWO SIDED MCC, MODEL 6, 800/300 AMP, 600V; SIDE ONE: 4 SECTION A-D, (10 SWITCHES; SIDE TWO: 4 SECTION E-H, (9) SWITCHES

PLC CONTROLS

• (3) DEBARKER PLC CABINETS (ROOM 23)

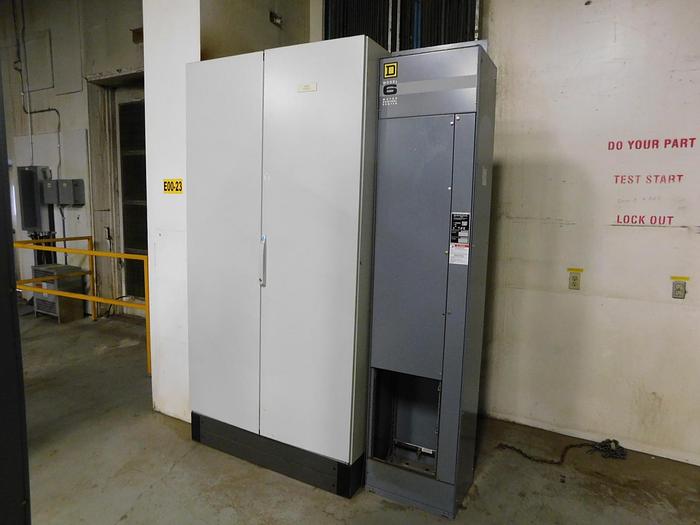

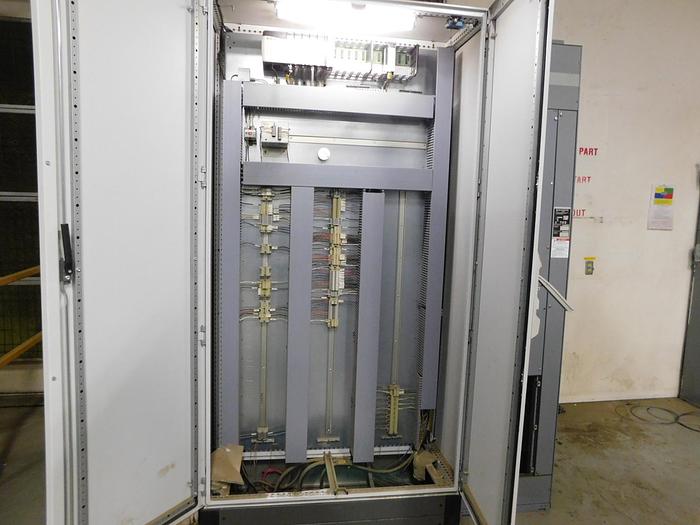

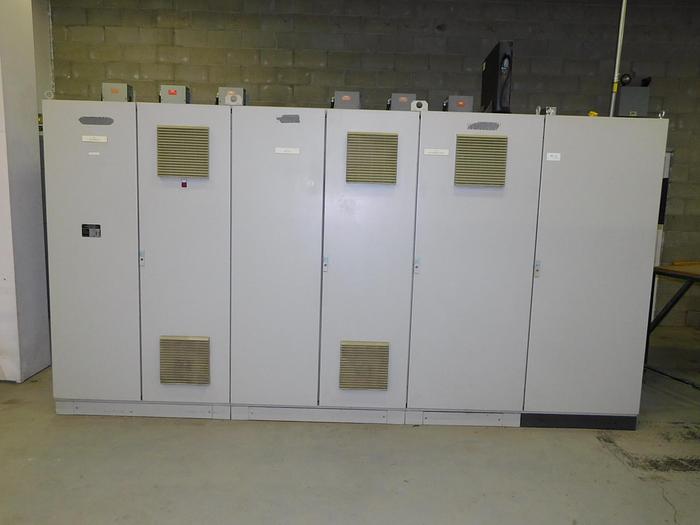

• E00-23- RITTAL PLC CABINET (PLCB-22 DRYER); W/ SQUARE D MODEL 6 SINGLE SECTION MCC; 800/300 AMPS 600V; NO. 27972250-001;

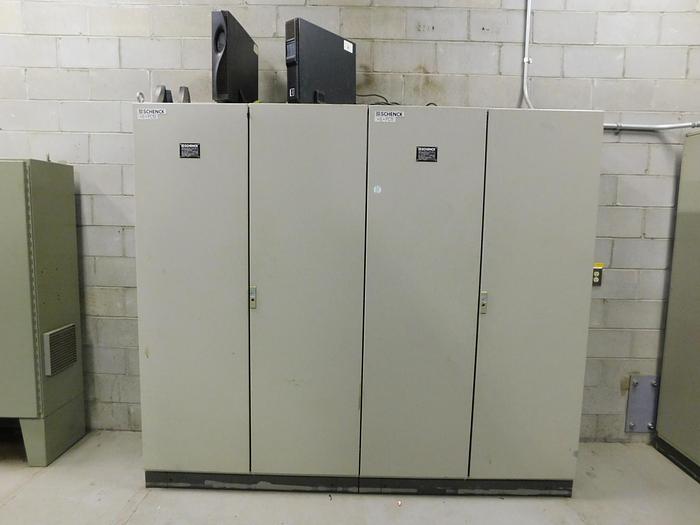

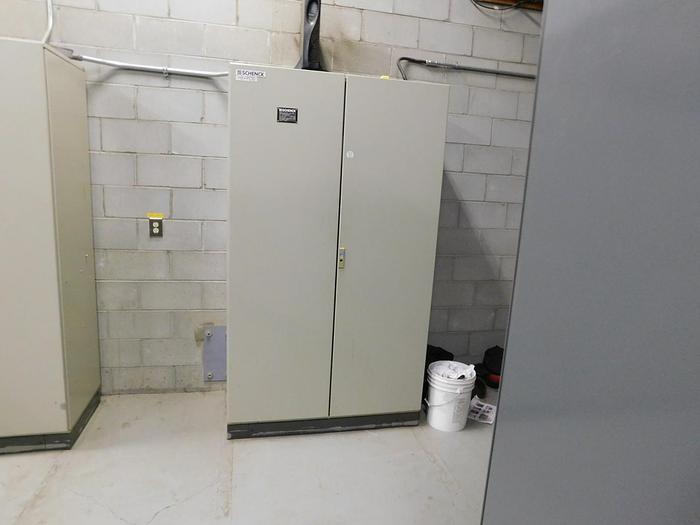

• SCHENCK PLC CABINET, MARKED =G +PC10
• SCHENCK PLC CABINET, MARKED =G +PC11CHENCK PLC CABINET, MARKED =H +PC10
• SCHENCK PLC CABINET, MARKED =K +PC10
• DIEFFENBACHER GmbH PLC CONTROL, D17-2863-02-00-02; S/N 05560.01.004; 3X 460V; 10 kW 100 AMP;

PARTS

• ST6- ELECTRICAL PARTS ROOM, INCL., (4) RUNS 5" X 20' WOVEN METAL FLEX CONDUIT; ELECTRICAL BREAKERS, PLUGS, FITTINGS, CLAMPS, CONNECTORS, BOXES, FUSES, WELDING PLUGS, PLASTIC, CONTROL CABLE TRAY; MORE;
• ST3- STORAGE ROOM OF HYDRAULIC CYLINDERS, NEW & REBUILT
• NEW IN CRATE REX 3 PHASE TRANSFORMER; MODEL A10Y; S/N A3116S; 24,940 HV TO 4160/2400 LV; 3000 KVA?
• (6) PARTIAL SPOOLS OF PRESS CABLE, 18MM X 1298' 6X36 IWRC EIPS LEFT HAND REGULAR LAY
• CONTENTS OF ELECTRICS ROOM: PILLOW BLOCKS, BEARINGS, PARTS & COMPONENTS, COPPER TUBING, MUCH MORE.
• ST5 STORAGE ROOM: ASSORTED SHAFTS, TUBES, MACHINED METAL COMPONENTS, ROLLERS, WHEELS, ETC.
• ST4- (5) ROLLS OF NEW 12" CONVEYOR BELTING; CABINETS OF SHACKLES, CHAINS, HOOKS, SLINGS
